Automatic Water Bottling Machine
Automatic water bottling machine is used to filling mineral water or pure water into PET bottle from 200ml-1500ml. Different models can satisfy various requirement of output from 3000BPH to 24000BPH.
- Model: CGF32-32-10
- Production capacity (500ml): 15000-18000B/H
- Air consumption: 0.4m3/min
- Dimensions (L×W×H): 4100×2850×2400mm

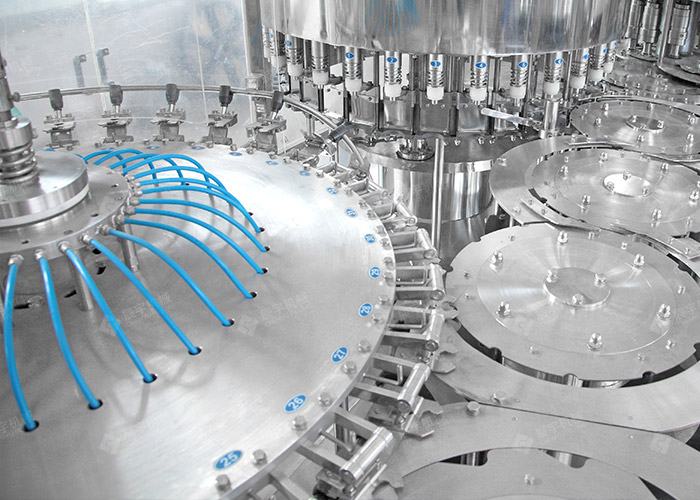

Automatic Water Bottling Machine Description
Automatic water bottling machine is used to filling mineral water or pure water into PET bottle from 200ml-1500ml. Different models can satisfy various requirement of output from 3000BPH to 24000BPH.
The water bottling machine has compact structure, simple form, perfect control system, convenient operation and high degree of automation. The water bottling machine operation adopts advanced touch screen operation control system, which can realize man-machine dialogue operation.
Detail
Washing Part
1.Into bottle way is air conveyor direct connection with Bottle dial
2.All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean
3.304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
4.304/316 stainless steel washing pump make the machine more durable
Filling Part
1.304/316 Stainless steel high precision filling nozzle
2.Filling volume adjustable in fine rank, same liquid level after filling
3.All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
4.304/316 stainless steel filling pump
Capping Part
1. Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
2. All 304/316 stainless steel construction
3. No bottle no capping
4. Automatic stop when lack of bottle
5.Capping effect is stable and reliable ,Defective rate ≤0.2%
Specifications & Parameter
| Model | CGF8-8-4 | CGF14-12-5 | CGF16-16-5 | CGF20-20-6 | CGF24-24-8 | CGF32-32-10 | CGF40-40-12 | CGF50-50-15 |
| Production Capacity:500ml(B/H) | 3000-4000 | 4000-5000 | 7000-8000 | 10000-12000 | 12000-15000 | 15000-18000 | 18000-20000 | 20000-24000 |
| Filling precision | ≤±3mm | |||||||
| Suitable bottle | Round or square shaped bottle | |||||||
| PET Bottle | Bottle Diameter:Ф50～Ф100 Bottle Height:150mm～330mm | |||||||
| Suitable Cap Standard | Plastic Screw Cap | |||||||
| Rinsing Pressure(MPa) | 0.2～0.25 | |||||||
| Water Consumption of Rinsing(Kg/h) | 500 | 600 | 700 | 800 | 1500 | 1800 | 2500 | 3000 |
| Air Pressure(MPa) | 0.4 | |||||||
| Air Consumption(m3/min) | 0.3 | 0.3 | 0.3 | 0.3 | 0.4 | 0.4 | 0.5 | 0.55 |
| Total Power(Kw) | 2.5 | 3 | 3.3 | 3.8 | 4.2 | 5.6 | 6.4 | 9.8 |
| Overall Dimensions (L×W×H)(mm) |
1950×1450×2350 | 2260×1600×2350 | 2350×1900×2350 | 2900×2200×2400 | 3300×2300×2400 | 4100×2850×2400 | 4250×3200×2400 | 5750×3750×2400 |
| Total Weight(Kg) | 2500 | 2800 | 3000 | 4000 | 5000 | 6500 | 8000 | 9000 |
FAQ
Q: What is a “3-in-1 Monobloc” water filling machine?
A: 3-in-1 monobloc integrates three essential functions—Rinsing, Filling, and Capping—into a single machine frame. This compact design saves factory space, reduces power consumption, and minimizes the risk of secondary contamination during the bottling process.
Q: Can one water filling machine handle different bottle sizes like 330ml, 500ml, and 1.5L?
A: Yes. By using Neck-Handling technology, our machines can switch between different bottle heights without adjusting the conveyor height. You only need to change a few “changeover parts” (like star wheels), which typically takes less than 20 minutes.
Q: How does the machine ensure the hygiene and safety of the bottled water?
A: Hygiene is our priority. Our machines are built with food-grade SUS304/316L stainless steel. They feature a built-in rinsing system to clean bottles before filling, and the entire fluid path is compatible with CIP (Clean-in-Place) systems for automated sterilization.
Q: How to get machine quote?
A: Please tell us your product type, desired production capacity, container information, and any special requirements. Our sales manager will contact you immediately to discuss your needs and provide a preliminary proposal and quote.
Q: How often does the machine need to be cleaned?
A: Daily. You should perform a “Clean-In-Place” (CIP) cycle at the end of every shift. A deeper teardown and sanitization should happen weekly to prevent bacterial growth.
Q: Why should I choose Chenyu Machinery over other suppliers?
A: With over 25 years of experience, Chenyu Machinery provides not just the machine, but a Turnkey Solution. From water source analysis and factory layout design to installation and 24/7 after-sales support, we ensure your production line is optimized for maximum ROI (Return on Investment).
Turnkey Project
Drinking water production process: water treatment system → bottle blowing machine → air conveyor → water filling machine → cap elevator → blow dryer → flat conveyor → code sprayer → labeling machine → shrink wrapper
